THRU-STUD™

(TS)

THRU STUD

  Bracket needs to be installed firmly up against stud and all holes nailed off before drilling service duct hole.

  Galv. Bracket 30mm x 3.15 dia hot dip galvanised nails to be used in NZ.

  Galv. Bracket 35mm x 3.15 dia hot dip galvanised nails to be used in Australia.

  Maximum hole cut is 59mm dia. in 90mm X 45mm stud when using THRU-STUD™ brackets.

  Use THRU-STUD™ on 90mm x 45mm wall studs.

  No limitation on where THRU-STUD™ brackets may be installed along the length of stud.

  No restriction on number of THRU-STUD™ brackets per stud.

  THRU-STUD™ can be used on any stud length that complies with the 3604:2011 or AS1684.2-2011.

  NOT TO BE USED IN EXTERIOR OR SUB FLOOR SITUATIONS.

  Nails are not provided.

  The purchaser is responsible for checking that THRU-STUD™ brackets are suitable for its intended use.

Bracket Max Hole size

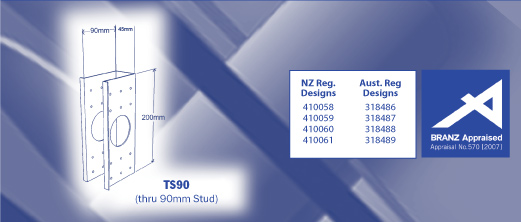

THRU-STUD™
(TS90)
59mm
